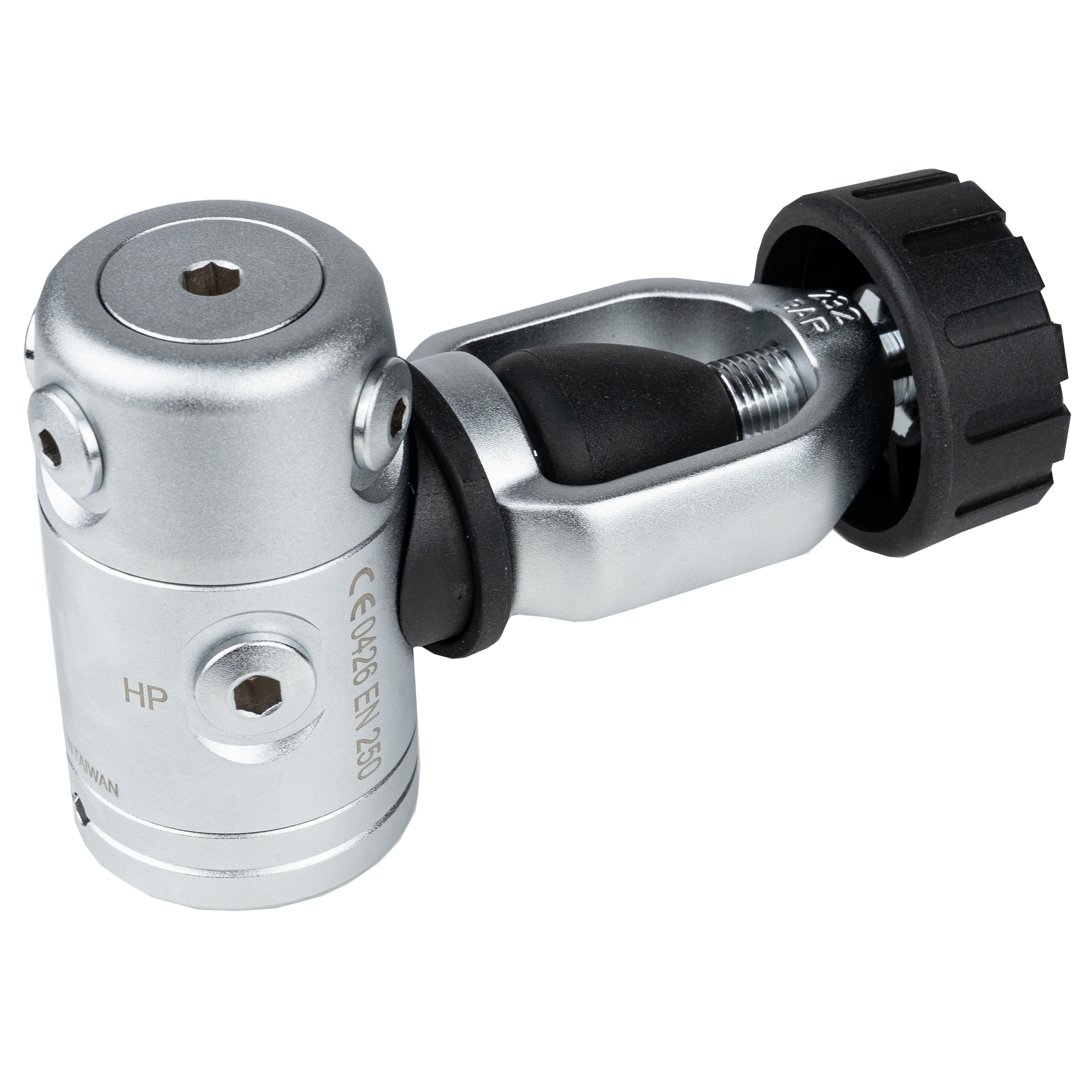

R-8
BALANCED DIAPHRAGM 1st STAGE
FEATURES
Available with Yoke or 300 bar DIN (G5/8) connector
DESCRIPTION
• Balanced diaphragm cold water first stage
• High-flow, fast-acting valve system capable of delivering large gas volume in an instant
• 4 intermediate pressure ports (located in the swivel turret) and 2 high pressure ports
• Available with Yoke or 300 bar DIN (G5/8) connector
• Built to withstand cold water conditions
specs
• 4 intermediate pressure ports (located in the swivel turret) and 2 high pressure ports.
• Available with YOKE or 300BAR DIN (G5/8) connector.
• Anti-freeze models are available Separately.
• Inter. pressure setting @ 9.5~10.0 bar (137~145psi)
• Ventilation rate @ 206 bar (3000psi): 3820L / min. (135 cuft / min.)
